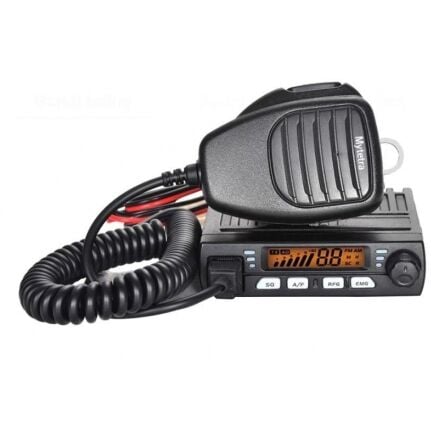

Myt 925 CB
₺3.700,00
Stokta var, şimdi sipariş ver hemen kargoda
Tahmini Kargo Süresi :
High power output 8W (H/L power selective) |
||
Frequecny range: 25.615-30.105MHZ (3 groups selectable) |
||
40 storage channels |
||
AM and FM mode switchable |
||
AM and FM mode squelch level adjust |
||
RF gain control |
||
Keypad lock |
||
Scan |
||
Frequency is fixed and unprogrammable |
Technical Specifications:
General Specifications |
|
Modulation mode |
AM/FM |
Frequency range |
25.615-30.105MHz |
Frequeny tolerance |
±5.0ppm |
Input voltage |
13.2 |
Dimensions:(mm) |
109*104*25 |
Weight:(g) |
421 |
Frequency control |
PLL Synthesizer |
Operating Temperature Range |
-25℃~ + 50℃ |
Current Drain |
Transmit: 2A MAX |
Receive: Squelched 0.3A |
|
VOL Max: 0.8A |
|
Antenna Connector |
UHF, SO-239 |
Transmitter Specifications |
|
Power output |
8 Watts FM/AM |
Transmission interference |
inferior to 4nW(-54dBm) |
Frequency Responce |
300-3000Hz |
Modulated signal distortion |
inferior to 5% |
Output Impedance |
50 ohms |
Receiver Specifications |
|
Sensitivity |
Less than 1uV or 10dB(S+N)/N |
Image Rejection |
70dB |
Adjacent Channel Rejection |
60dB |
IF Frequencies |
1st 10.695MHz |
2nd 455Khz |
|
Audio Output Power |
1 watts |
Squelch |
less than 1uV |
Frequency Responce |
300-3000Hz |
Packing List:
1x MYT925 mobile radio
1x microphone,
1x mounting bracket,
1x power cable,
1x screw set.
